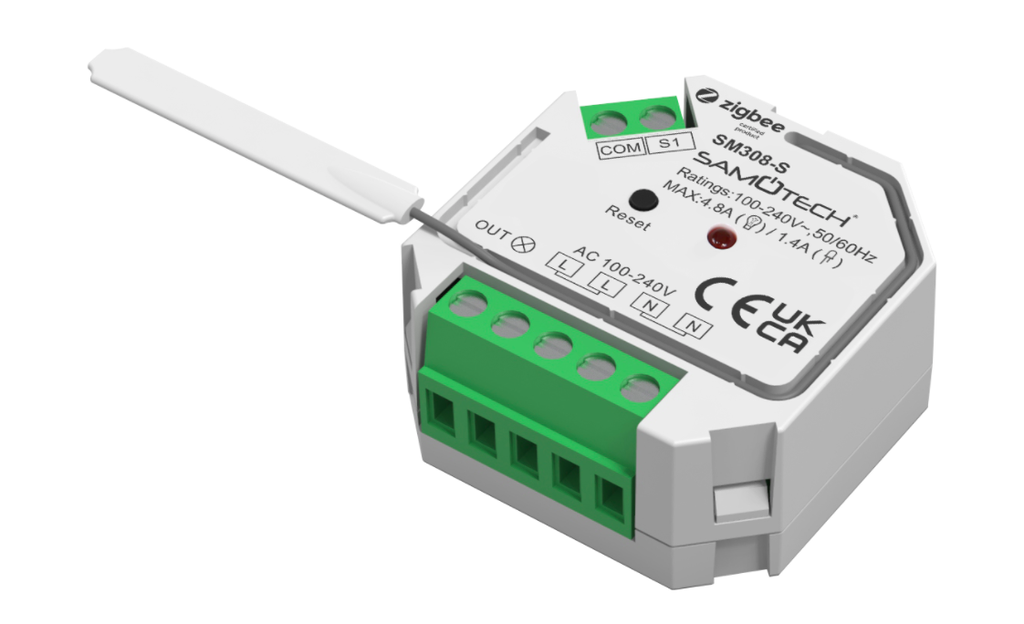

SAMOTECH Dimmer Module Switch - 1Load

• ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
• Compatible with Philips Hue, Homekit, Echo Plus, Hubitat, Homeassistant (ZHA, deConz, Conbee, Raspbee) and other universal Zigbee gateways
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads, capacitive loads or inductive loads. Requires a retractive switch to operate
• 1 Channel Output, Up to 400W
• Input and Output with Screw Terminals, Safe and Reliable
• Trailing edge version pre-set by factory setting
• Enables to control ON/OFF and light intensity of connected light source
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible Zigbee remote via Touchlink without coordinator
• Supports self-forming Zigbee network without coordinator and add other devices to the network
• Supports find and bind mode to bind a ZigBee remote
• Supports Zigbee green power and can bind max. 20 Zigbee green power remotes
• Mini Size, Easy to be Installed into a standard 86*86mm wall box
• Active power and energy metering functionality
• Can be wired with or without the neutral wire
• Innovative minimum dimming level and startup brightness setting function
• Implemented algorithm of smart light source detection
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20
